Channel penstock - twin-spindle / Stop Logs - Tesaco K

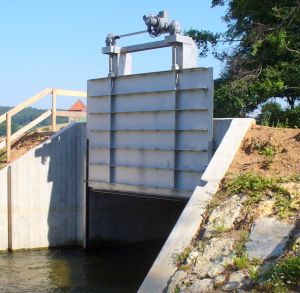

Channel mounted penstock - twin-spindle

Here you will find our channel penstocks with double-spindle mechanism.

In order to avoid tilting of the door from channel penstocks with very large width, they are equipped with a twin-spindle mechanism. The redirecting to one manual or electrical operating point is normallyperformed via gear boxes.

Following standard sizes are available:
1800 x 1800 to 4000 x 4000 mm

Additionally the TESACO-Stop Logs are administrated under the K-series. They are temporary hydraulic control elements and they are hoisted or lowered by local lifting equipment.

Following standard sizes are available:
400 x 400 to 5000 x 3000 mm

The fields of application are sewer systems, municipal- and industrial waste water treatment plants, flood protection and control, retention reservoirs, intake structures for power plants and industries (cooling water).

Data sheets could be downloaded in our download area.
