Reference Project Flood Protection Izola (Slovenia)

For a flood protection project in Izola (Slovenia), TESACO supplied a total of six stainless steel penstocks for regulating rainwater and flood runoff. In addition to the penstocks, the project included project-specific designed pedestal stands, operating rods, electric AUMA actuators, as well as complete technical project support. TESACO supported the project together with the customer from the initial planning and technical approvals to delivery and commissioning.

The Project

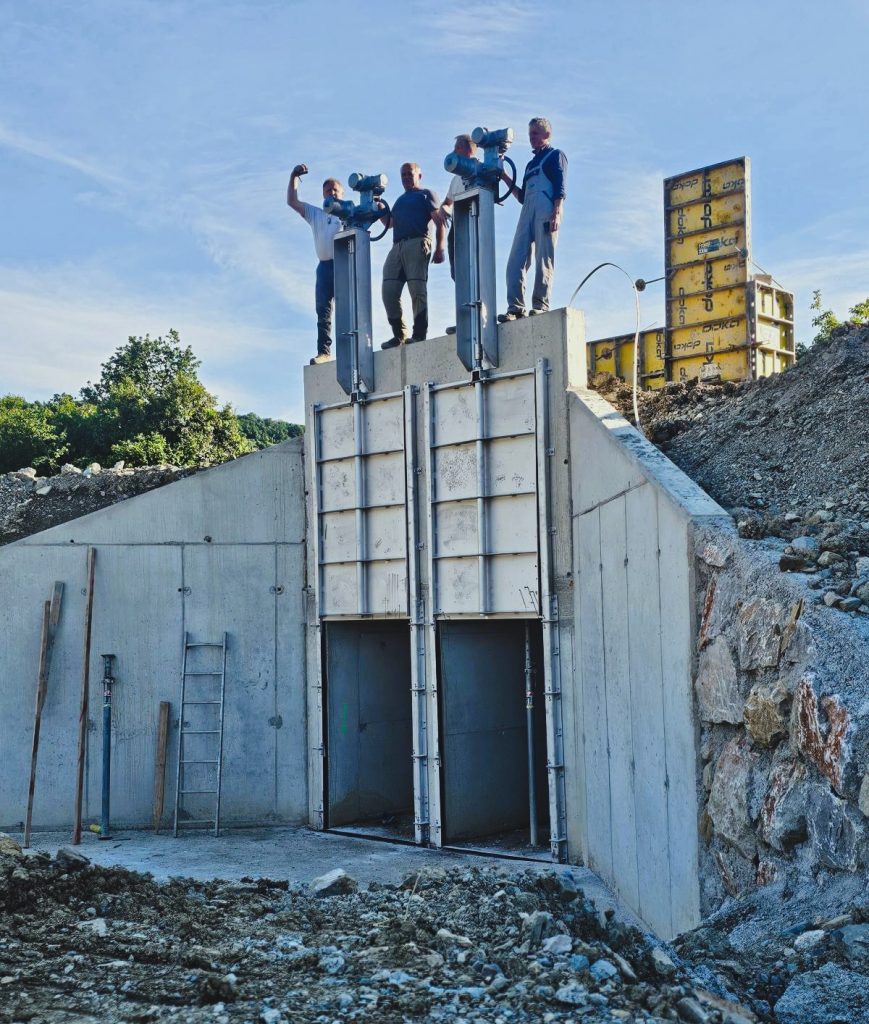

As part of municipal flood protection, several structures were equipped with electrically operated penstocks. The penstocks allow for controlled regulation of rainwater and flood runoff and help to operate the facilities safely even at high water levels. Since the individual structures differed in terms of size, installation situation, and operating height, each system was designed individually. In addition to the penstocks, pedestal stands and operating rods were adapted to the respective building geometries and coordinated with the on-site steel structures.

Project Overview

Location	Izola, Slovenia
Application	Municipal flood protection
Products	Stainless steel penstocks with electric actuator
Delivery Time	Approximately two months from technical approval to delivery

The Challenge

Each structure presented different requirements for the installation situation. Penstock sizes, operating heights, and connection details varied from structure to structure. At the same time, all components had to be easily integrated into the on-site steel structure and connected to the existing control technology.

In addition to the valve itself, constructive coordination with all project participants was therefore particularly crucial.

Our Solution

TESACO developed a project-specific solution consisting of penstocks, operating rods, pedestal stands, and electric actuators for each structure. During the planning phase, installation situations were coordinated with the customer and the necessary technical documents were created.

The electric AUMA actuators allow for operation directly on-site as well as integration into the higher-level control system. All components were delivered ready for installation and adapted to the respective building dimensions.

Technical Data

Planning and Documentation

The project involved much more than just supplying the penstocks. TESACO supported the customer with technical developments and project-specific documents as early as the planning phase. These included, among others:

Technical specifications
Project-specific installation drawings
Manufacturer declarations
Material certificates according to EN 10204
Factory acceptance tests
Documentation of the electric actuators
Operating and maintenance manuals

The technical documentation accompanied the project from planning through production to installation and commissioning, forming the basis for smooth project execution.

Project Schedule

Beginning of February 2026

Order Placement

Mid-February 2026

Planning / Coordination
Technical approval

End of February 2026

Procurement and production
Delivery

Beginning of May 2026

Assembly / Commissioning

Installation drawings for the project

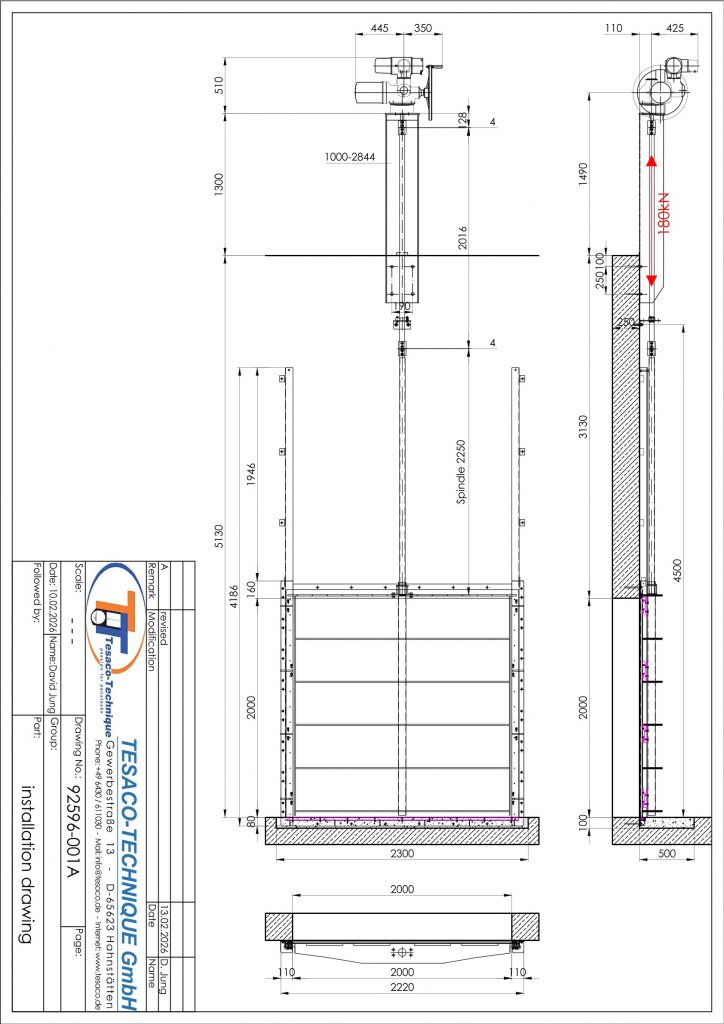

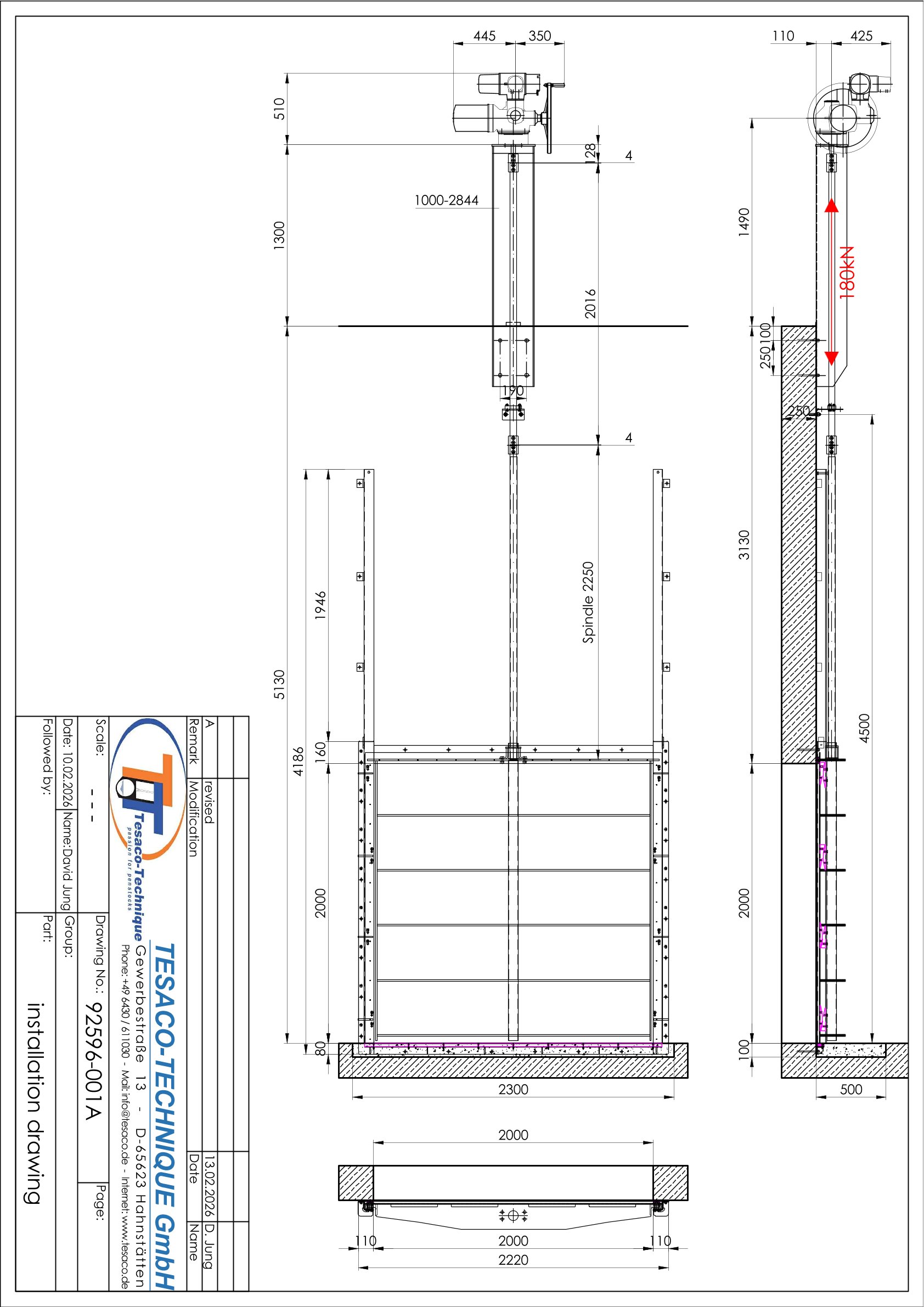

92596-001A

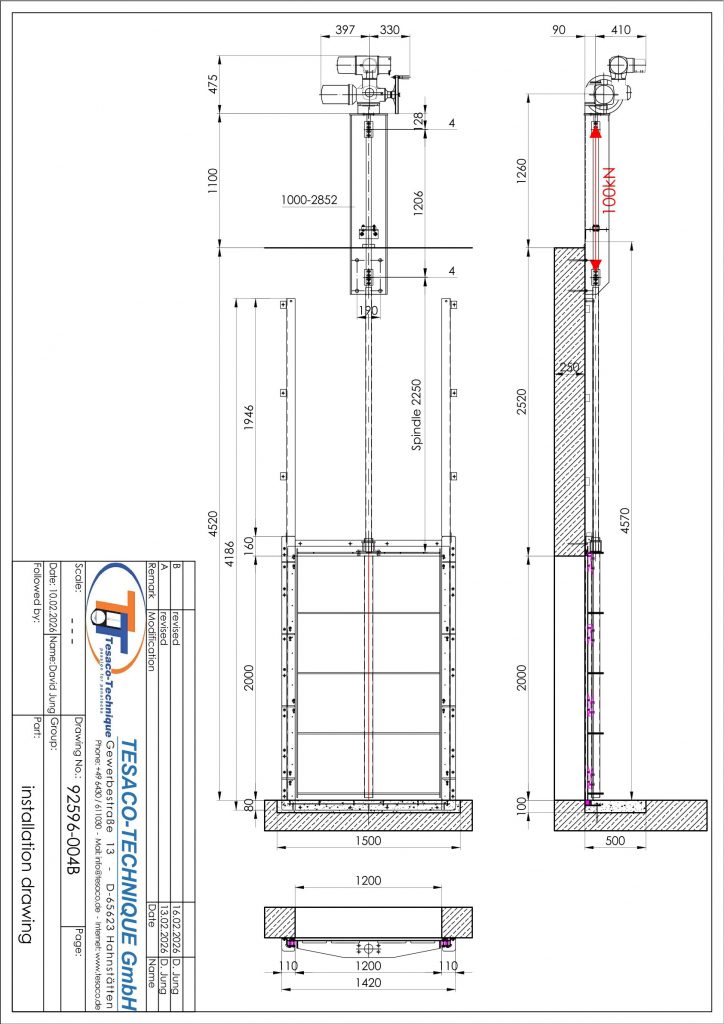

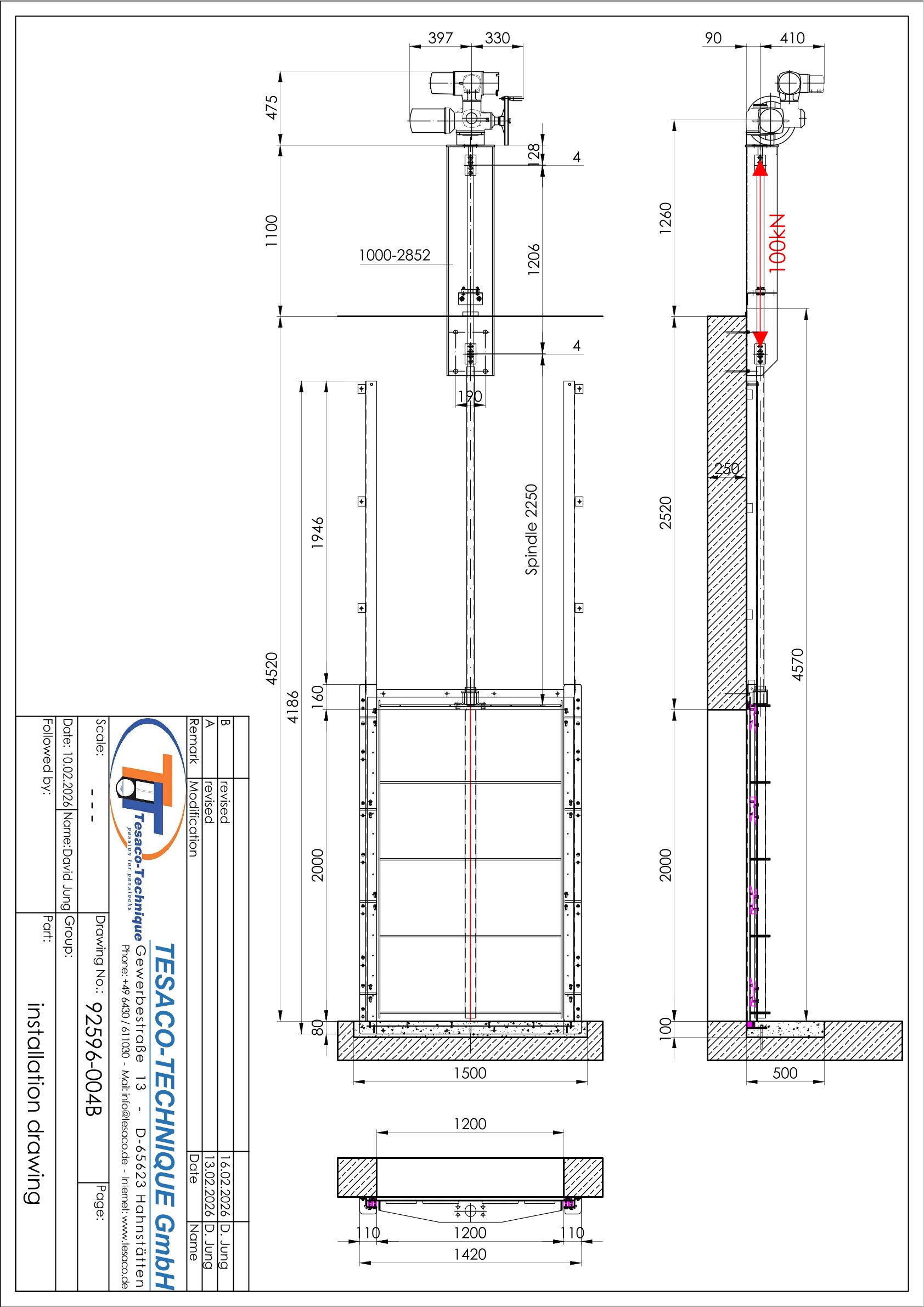

92596-004B

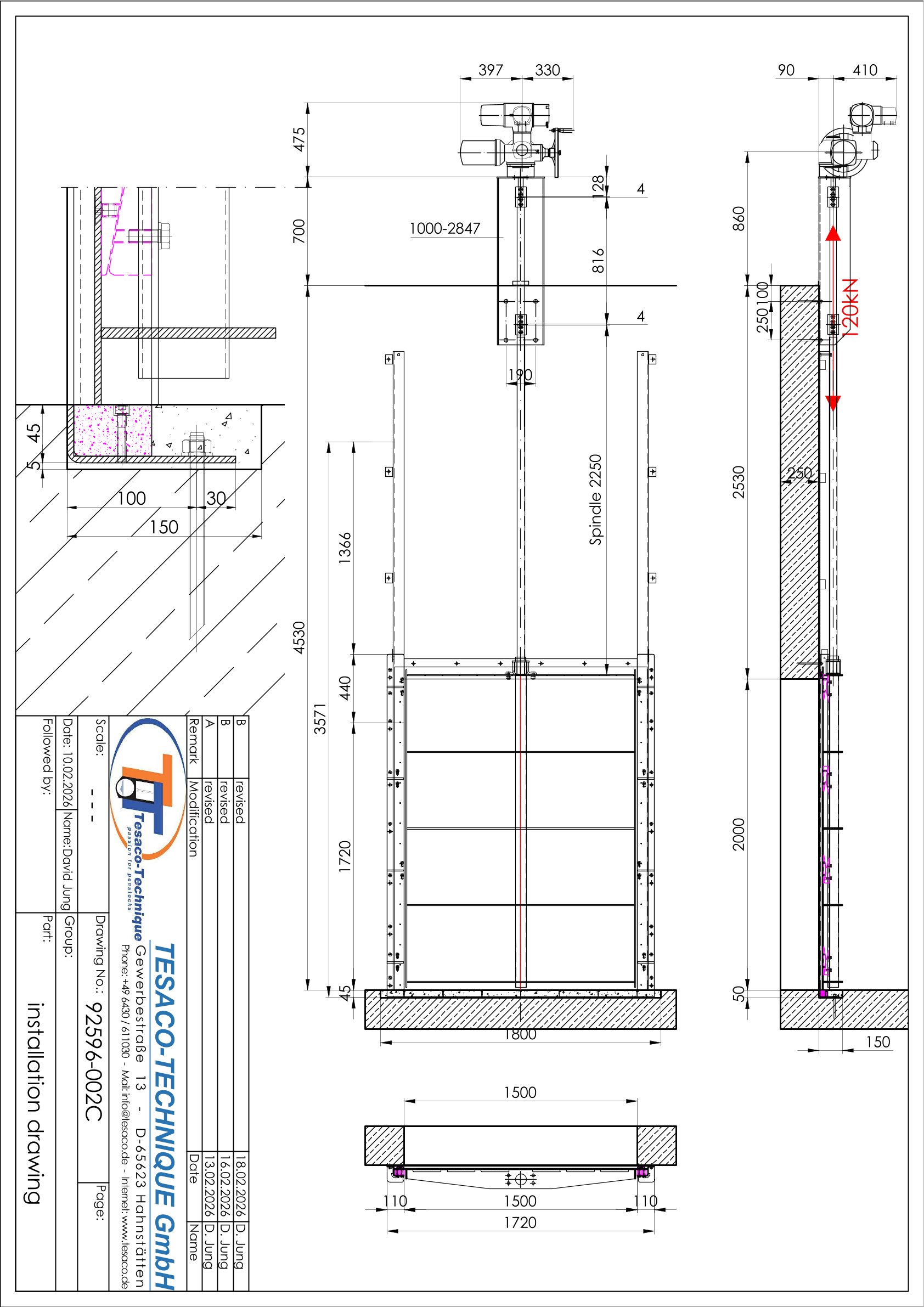

92596-002C

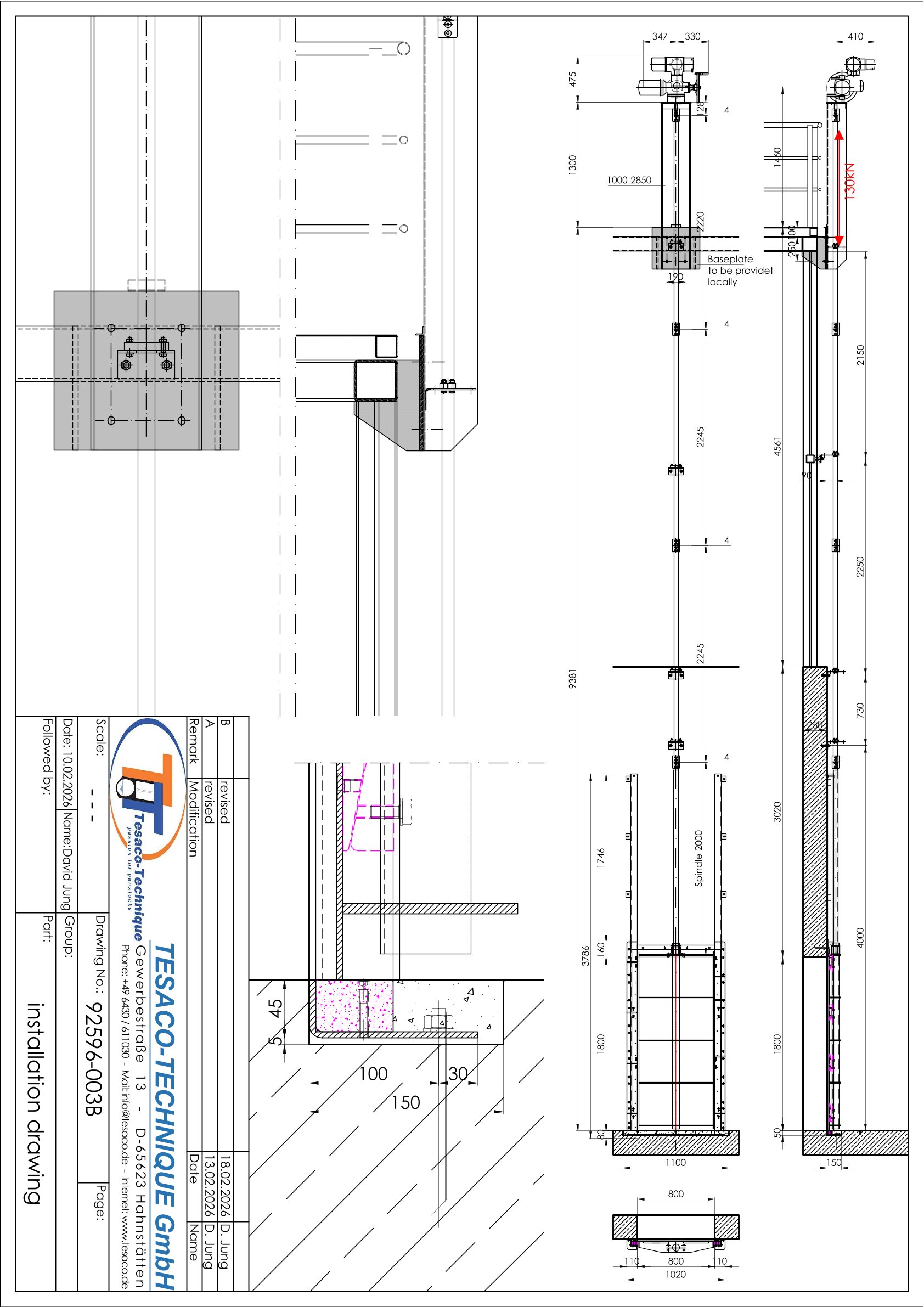

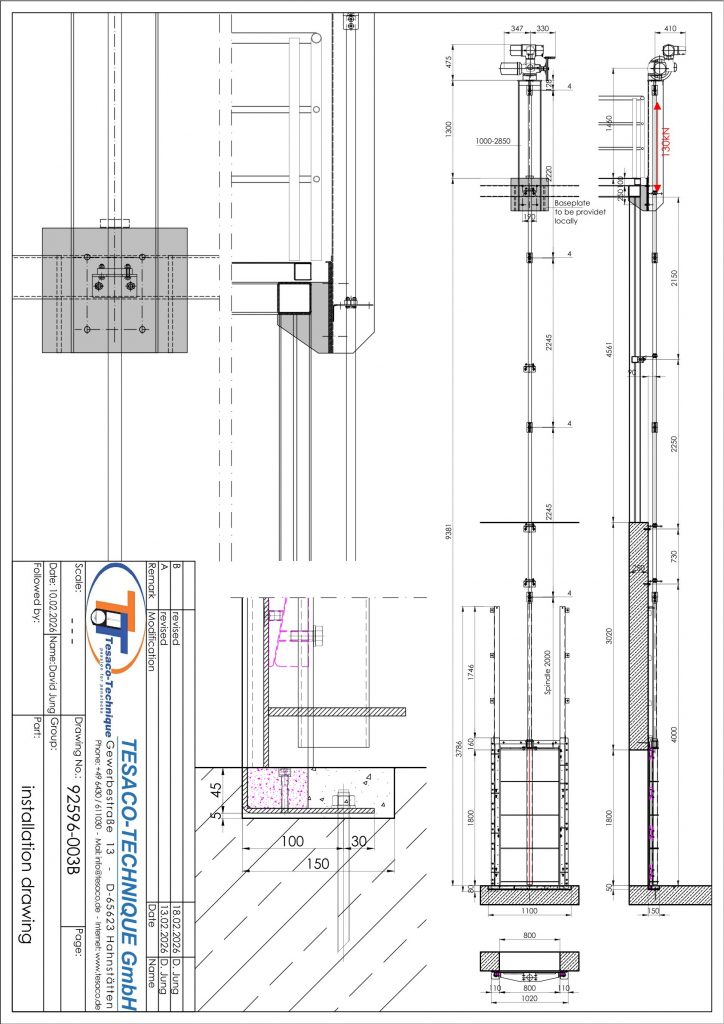

92596-003B

Further documents

Here you will find further documents that provide you with exciting insights into our project.

Why TESACO?

Every structure places different demands on valves, actuation, and installation situations. That is why we support our customers at an early project stage with technical design and develop project-specific solutions instead of standardized products. From the initial technical clarification to installation drawings and documentation, right up to final delivery, you receive all services from a single source. Thanks to short decision-making paths, our own design department, and a high level of vertical integration, projects can often be implemented within a few months.

Our satisfied customers

Are you planning a similar project?

Whether it is a flood control system, rainwater retention basin, pumping station, or special hydraulic structure – we support you during the planning phase with the selection of the appropriate valves and develop project-specific solutions for your installation situation.

Often, a structural drawing, a sketch, or a bill of quantities is sufficient to determine the technical execution and create a quote. Upon request, we can create project-specific installation drawings, technical specifications, and provide support during coordination with all project stakeholders.
