Installation dimensions for penstock and control penstock

The correct installation depth is crucial already in the planning phase. Our overview of standard installation dimensions supports planners, engineering offices, and executing companies in the dimensioning of penstocks and control penstocks.

Standard installation dimensions

The following table shows the standard installation dimensions of our penstocks and control penstocks.
Nominal Width Frame Width Frame Height Minimum Installation Depth, Key-Operated * Minimum Installation Depth, Above-Ground Actuated ** Minimum Installation Depth, Below-Ground Actuation ***
DN 150 370 410 570 720 890
DN 200 420 510 680 830 1000
DN 250 470 610 770 920 1090
DN 300 520 710 920 1020 1190
DN 400 620 910 1140 1240 1410
DN 500 720 1110 1350 1450 1620
DN 600 820 1310 1550 1650 1820
DN 700 920 1510 1760 1860 2050
DN 800 1020 1710 1960 2060 2250
DN 900 1120 1910 2150 2250 2480
DN 1000 1220 2110 2350 2450 2630
DN 1200 1420 2510 2900 2950 3180
Gate Valve Dimensions Key-Operated Above-Ground Actuator Below-Ground Actuator

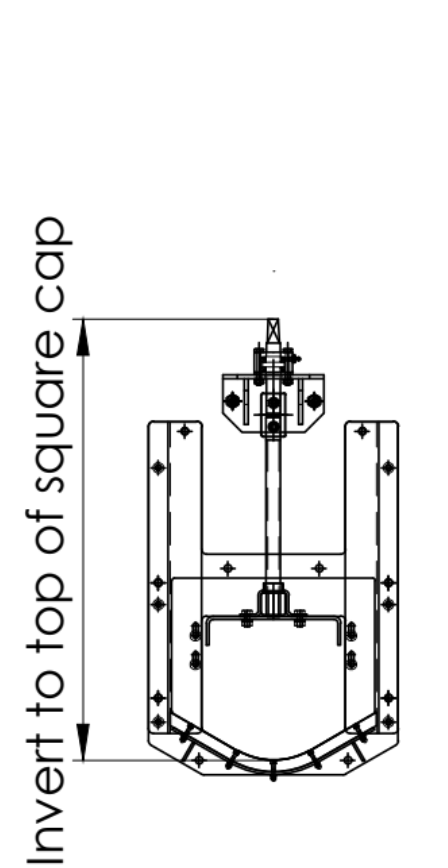

* Key Operation: For operation in a surface box, the installation depth refers to the bottom edge of the slab (invert to top edge of square head).

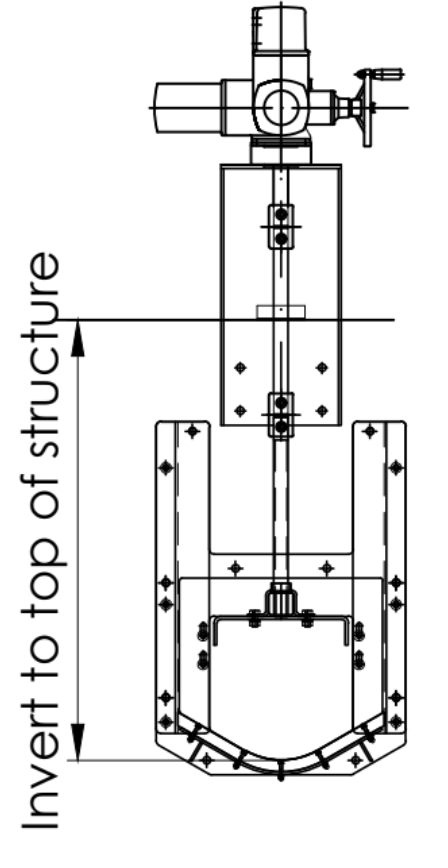

** Above-Ground Actuation: Applies to handwheel, gearbox with handwheel, and electric actuator (invert to top edge of structure).

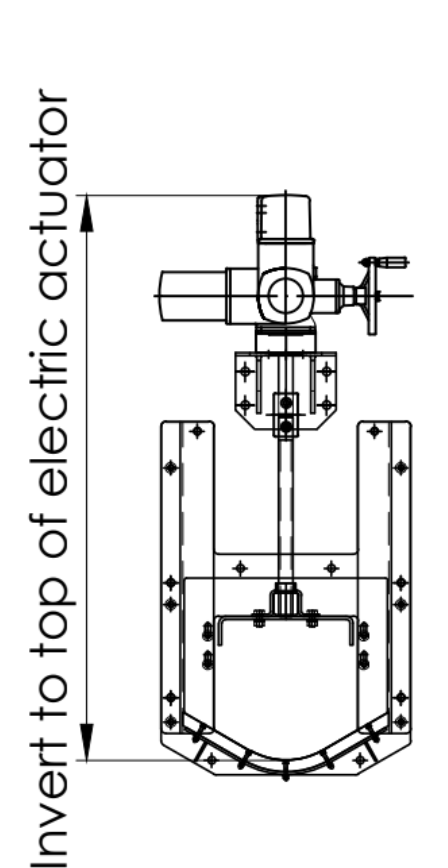

*** Below-Ground Actuation: Applies to gearbox with handwheel and electric actuator (invert to top edge of electric actuator).

Download table sheet

What does the installation depth mean?

The installation depth describes the distance between the bottom of the structure and the respective reference point of the operation. Depending on the design, this dimension refers to:

  • Top edge of square nut
  • Bottom edge of structure ceiling
  • Top edge of structure
  • Top edge of electric actuator

The correct reference point is specified in the table and is also automatically taken into account in the planning drawings as well as in the penstock configurator.

Determine installation dimensions automatically

The table serves as a quick overview of standard dimensions.
With our penstock configurator, the required installation dimensions are determined automatically based on your selection. Nominal diameter, installation type, and operation are taken into account.
Additionally, you will receive a notification if the entered installation depth is not sufficient for construction.

Go to penstock configurator

Find suitable planning drawing

With our penstock configurator, you can find the suitable standard version in just a few steps and go directly to the corresponding planning drawing. Alternatively, you can also select and download all standard versions directly on our planning drawings page.
To the planning drawings

Individual installation situations

The stated dimensions refer to our standard versions. Should your project deviate from this, we are happy to support you with the technical design. Often, a sketch, a photo, or an existing structural drawing is sufficient for us to develop a suitable solution at short notice.

Request a quote now

You can send us existing project documents, sketches, or structural drawings.

Alternatively, create the technical specification conveniently with our penstock configurator and send it to us together with the corresponding planning drawing.
On this basis, we will prepare a technical offer at short notice and, if necessary, a project-specific installation drawing.
